Description
-

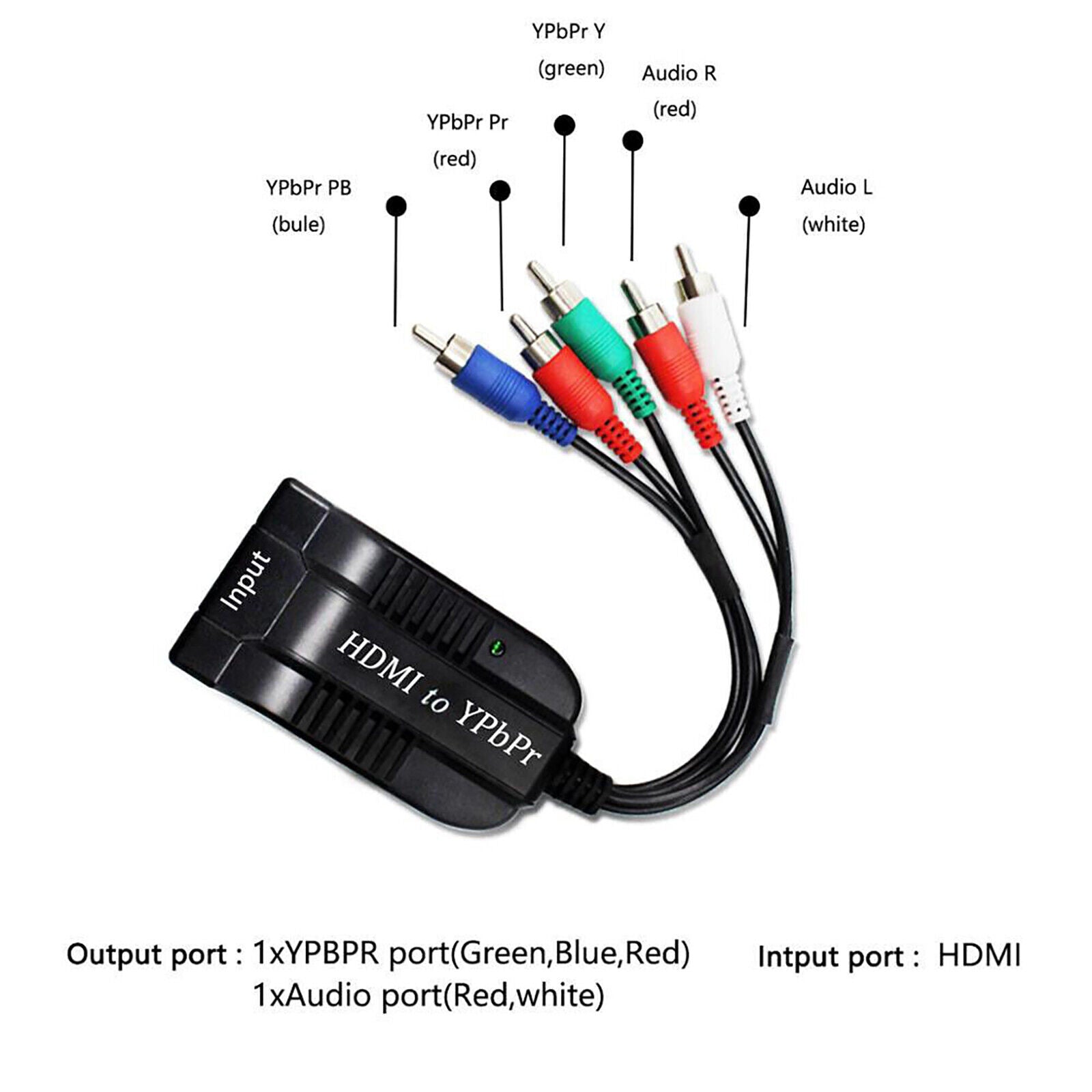

Input ports: 1 × HDMI
Output ports: 1 × YPBPR (Green, Blue, Red), 1 × Audio (Red, White)
Compatible HDMI: 1.3
Dimensions (mm): 110 (L) × 84 (W) × 28 (H)
HDMI input Resolution: 480I/P, 576I/P, 720P, 1080I, 1080P
YPBPR VIDEO output Resolution: 480I/P, 576I/P, 720P, 1080I, 1080PIntroduction:

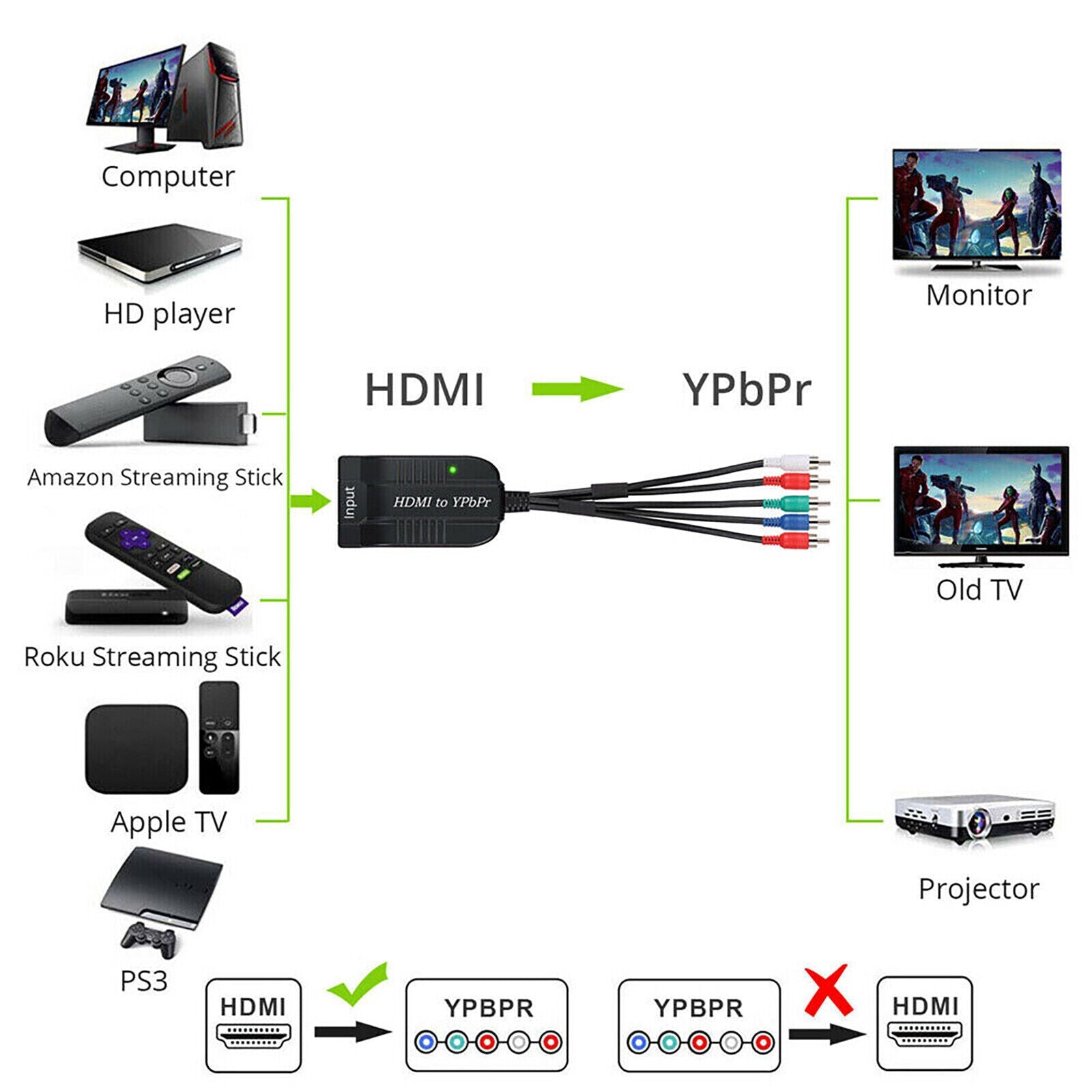

This converter is an HDMI to component video (YPbPr-Male) converter that seamlessly integrates modern home theater devices with older analog and digital audio equipment. It allows HDMI video home theater devices to connect to component and digital signal displays. With the HDMI to Component+Digital Audio Adapter, legacy home theater devices can easily connect to any YPbPr display for a complete digital video and audio experience. It is suitable for TV boxes, VHS players, VCRs, DVD recorders, etc.
Features:
- No need to install drivers, portable, flexible, plug and play.
- Low power consumption, no power adapter required.
- Compatible with HDMI 1.3.
Notice:
- Output: YPbPr and Audio (Male).
- This item does not have a downscaler function. If your component video device does not support 720 or 1080 resolution, adjust the HDMI input signal to 480 or 576 resolution. Some older component video devices may only support 480 or 576 formats. This product is BYPASS, meaning the output signal depends on the input signal.
- We cannot guarantee that your TV supports 1080p. If you need 1080p output resolution, please ensure your input device supports 1080p, 1080i, etc.
- Some new TVs may support up to 1080P50, but according to the YPBPR standard, they may only support up to 1080i. Please set the correct resolution accordingly.
- Use the micro cable to connect power.
- This item may not be compatible with certain TVs, Blackmagic products, etc., due to resolution and frame rate limitations (e.g., does not support 23.98, 29.97, 59.94). If it does not work with your monitor, check and adjust your TV's resolution settings.

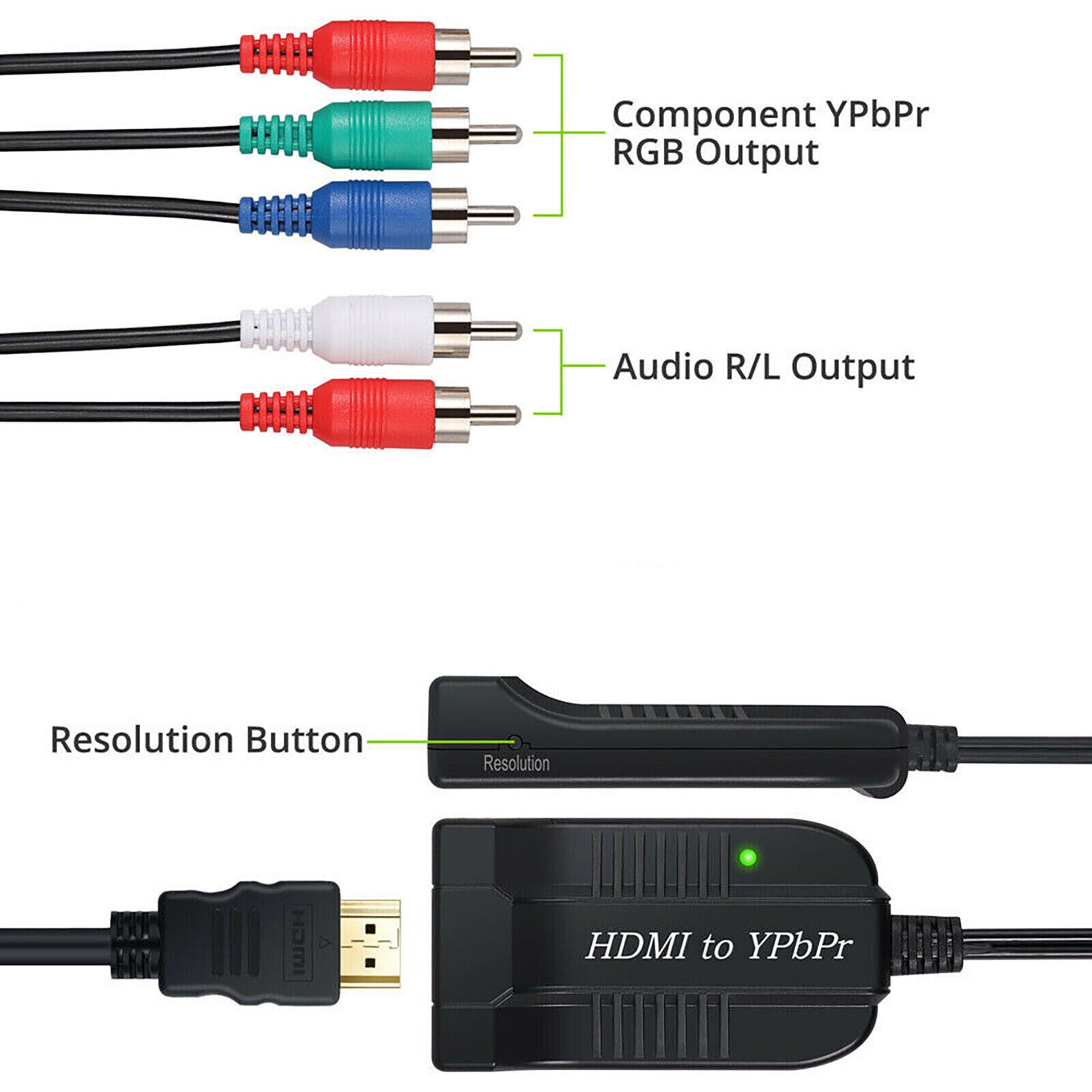

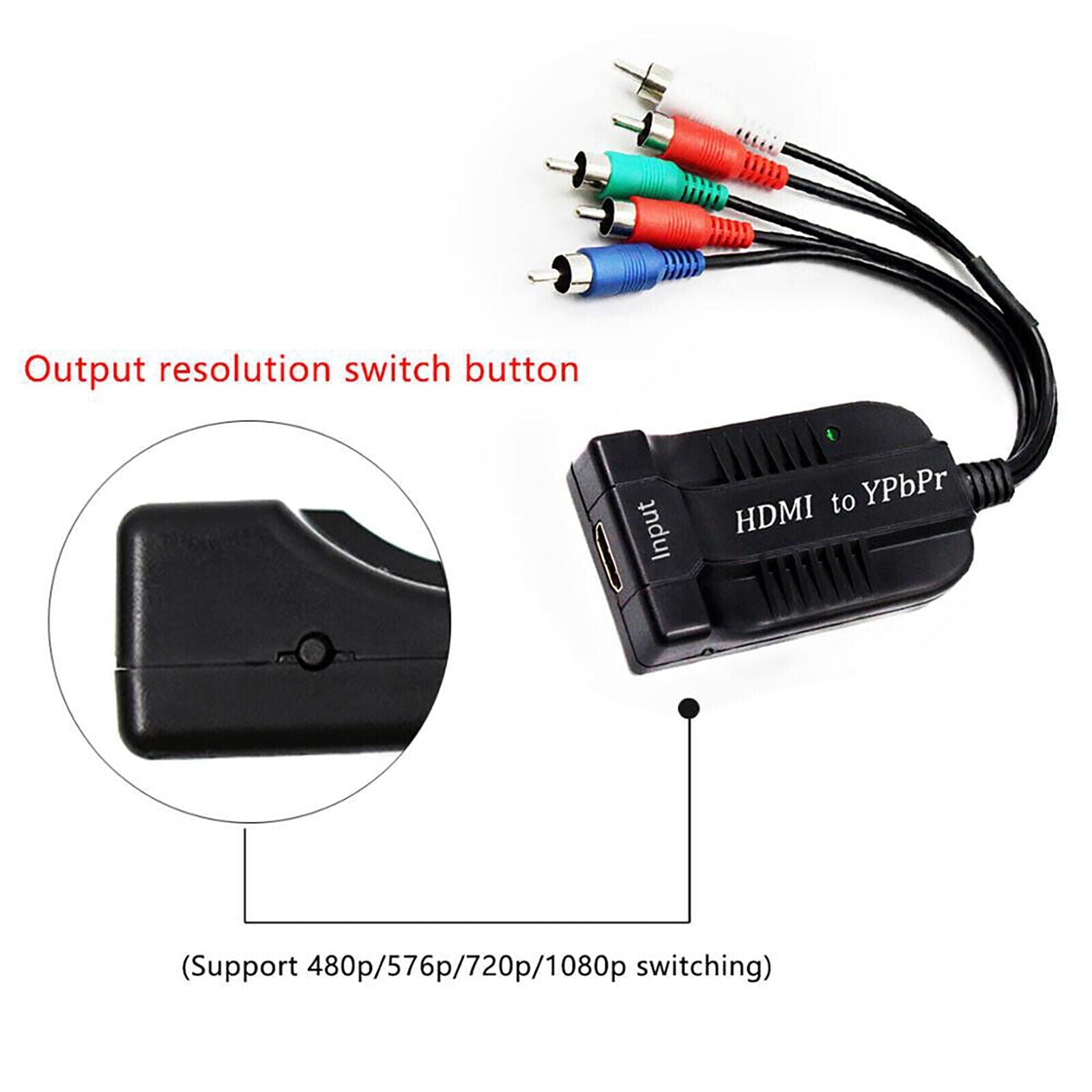

- The product includes a resolution adjustment function with a button on the side offering 6 settings (480p/60Hz, 576p/60Hz, 720p/50Hz, 720p/60Hz, 1080p/50Hz, 1080p/60Hz). It supports OSD (On-Screen Display) for clearer and more convenient operation, showing the resolution format on your TV screen.
Package Includes:
- Main unit (HDMI to YPBPR Male) × 1
- Power Cable × 1
- User Manual × 1
